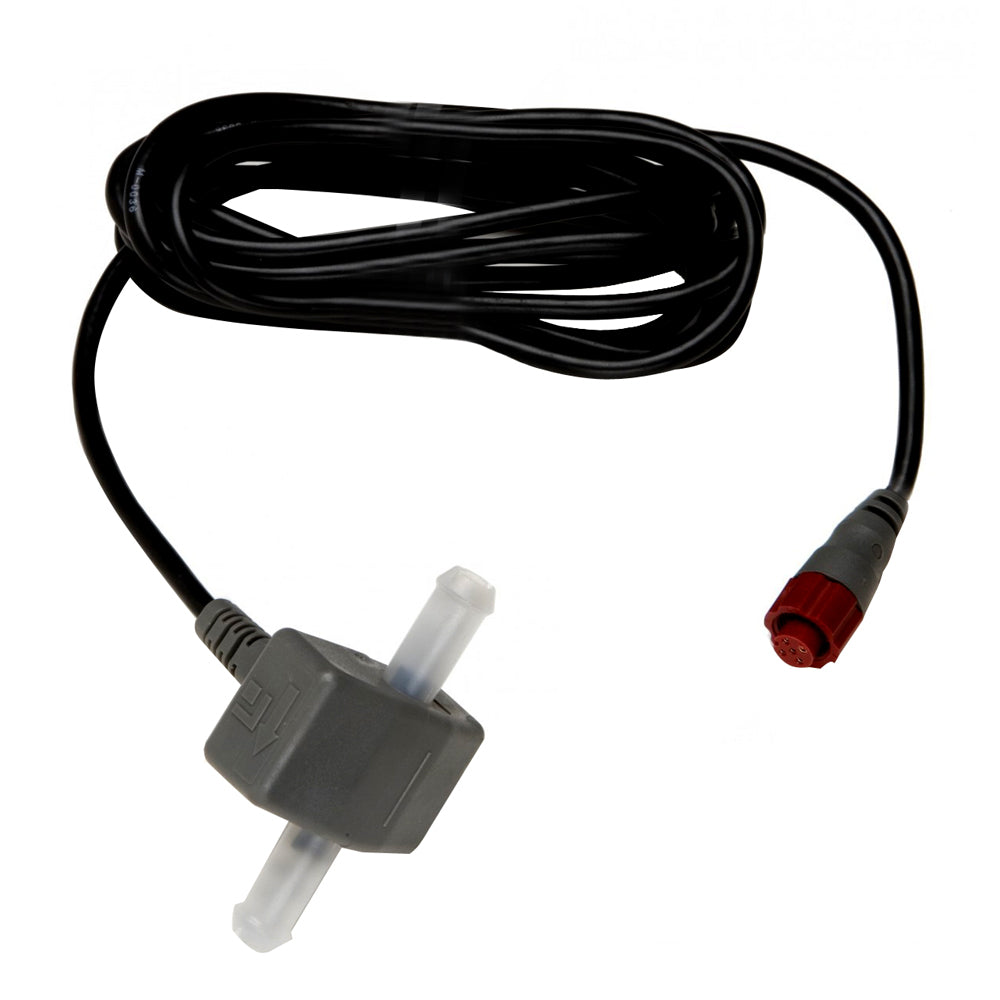

Lowrance Fuel Flow Sensor w/10′ Cable & T-Connector – 000-11517-001

Fuel Flow Sensor with 10′ cable & T-connector

Fuel Flow Sensor Gasoline ONLY. 1 required per engine. Up to 3 engines supported.

Outputs:

• Fuel Flow
• Tank Fuel Used
• Trip Fuel Used
• Seasonal Fuel Used

Cable Length:10′
Fuel Line Diameter:3/8″ (9.5mm) Inside Diameter
Flow Rate Measured:Optimized for 0.6-45 Gal/hr but can measure outside these values
Added Back Pressure to the fuel system:0.5 PSI at 20 Gal/hr; 1 PSI at 40 Gal/hr
Installation Location:Above the max level of the fuel tank. in-line after the fuel filter and any Y’s or T’s in the line
Package:The Fuel Flow Sensor. N2K T and 2 (two) 1″ hose clamps
Fuel Type:Gasoline only. The Fuel Flow Sensor does not operate diesel engine fuel systems
Hole required to route through a bulkhead:22mm (7/8″)
Multiple Fule Flow sensors possible:Yes
